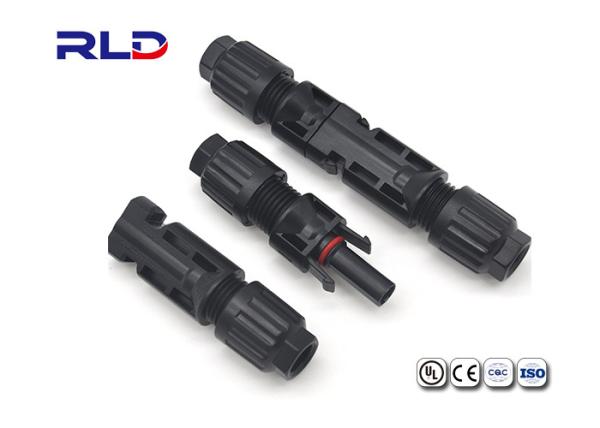

TUV Approval Solar Panel 1000V DC Waterproof Cable Connector
Quick Detail Of Waterproof Cable Connectors
Solar Panel connector is a connecting device for connecting solar panel circuits. It can connect various groups of circuits safely
and quickly. It is dustproof, waterproof, anti-aging, UV resistant, light and easy to use, easy to install, safe and long-lasting.
Life and other characteristics.
The solar panel connector is self-locking and consists of the following components:
1) Connector plastic body: the material used is PPO
2) Waterproof colloid: the material used is silica gel
3) Contact conductor: the material used is copper tin
Specifications of Waterproof Cable Connectors
| Insulation Materials | PPO |
| Rated Current | 20A-30A |
| Rated Voltage | TUV 1000V DC / UL 600V DC |
| Terminal Material | Copper , Tin plating |
| Contact Resistance | <0.3mΩ |
| Diameter of terminal holes | Ø4mm |
| Compatible solar cable | 4.0/6.0mm² (12/10 AWG) |
| Protection Level | IP67 |
Application Of Waterproof Cable Connectors
1. Outdoor LED Lighting
2. Stage Light
3. LED Lighting System
Technical date
| Pins number | Rated Current | Rated Voltage | Contact Resistance | Insulation Resistance | IP Level | Cable Specifications | Cable Range |
| 2 | 8A | 250VAC | 10mΩ | 200MΩ | IP68 | <1.5mm2 | 0-9mm |
| 3 | 8A | 250VAC | 10mΩ | 200MΩ | IP68 | <1.5mm2 | 0-9mm |
Our Advantages
1. Customized Waterproof Connectors : For all connectors we provide OEM & ODM service.
2. Fast Delivery : 1-3 working day for sample ; 5-7 working days for bulk order.
3. Factory direct support : Realeader foucs on Waterproof Connectors for over 13years.
Application of Waterproof Cable Connectors
